LineList¶

class msaexp.utils.LineList(data=None)[source]¶

Bases: object

Tools for working with a table of lines

Examples

from msaexp.utils import LineList

ll = LineList()

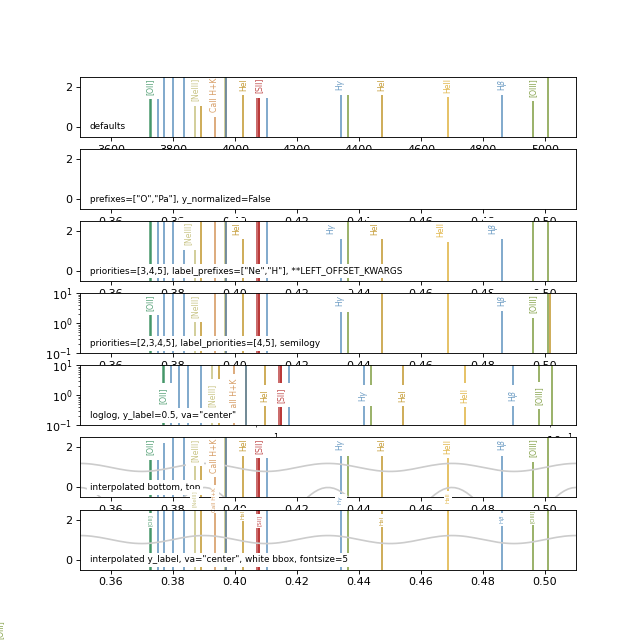

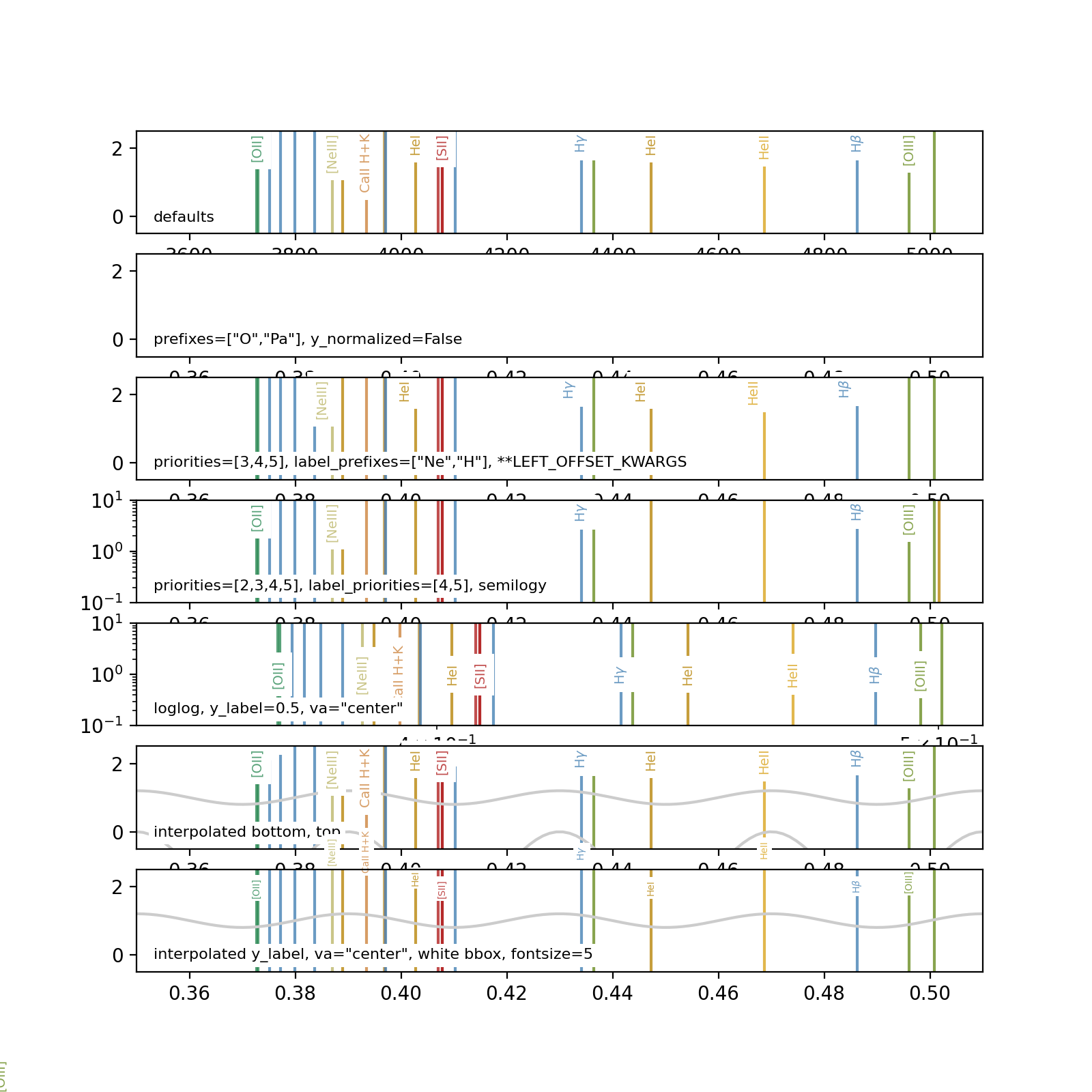

fig = ll.demo()

(Source code, png, hires.png, pdf)

Attributes Summary

`CLEAN_CENTER_KWARGS`
`LEFT_OFFSET_KWARGS`
`N`
`RIGHT_OFFSET_KWARGS`
`WHITE_BBOX`

Methods Summary

`add_to_axis`(ax[, wave_pixels, bottom, top, ...])	Add vlines and labels to axis
`demo`([xlim])	Show a demonstration of various plot options
`from_table`(tab[, wave_column, to_angstroms, ...])	Generate from normal table with a list of line wavelengths
`load_data`([fill_color])	Load the data from `msaexp/data/linelist.ecsv`
`select_lines`([z, wave_range, prefixes, ...])	Get selection of lines within a wavelength range
`spec_model`(spec[, z, selected, fnu, use_ratios])	Make line models `msaexp.spectrum.SpectrumSampler.fast_emission_line`

Attributes Documentation

CLEAN_CENTER_KWARGS = {'bbox': {'alpha': 1.0, 'boxstyle': 'square,pad=0.3', 'ec': 'None', 'fc': 'w'}, 'ha': 'center', 'x_pad': 0.0}¶

LEFT_OFFSET_KWARGS = {'ha': 'right', 'x_pad': -0.005}¶

N¶

RIGHT_OFFSET_KWARGS = {'ha': 'left', 'x_pad': 0.005}¶

WHITE_BBOX = {'alpha': 1.0, 'boxstyle': 'square,pad=0.3', 'ec': 'None', 'fc': 'w'}¶

Methods Documentation

add_to_axis(ax, wave_pixels=None, bottom=0, top=1.0, x_pad=0, wfunc=<function min>, y_label=0.98, priorities=[3, 4, 5], label_priorities=None, label_prefixes=[], y_normalized=True, rotation=90, ha='center', va='top', lw=1.5, ls='-', fontsize=7, alpha=0.8, bbox={'alpha': 1.0, 'ec': 'None', 'fc': 'w'}, zorder=1, label_zorder=2, **kwargs)[source]¶

Add vlines and labels to axis

Parameters

axmatplotlib axis: Axis to draw labels in
bottomfloat, (array-like, array-like): Lower limit of vlines to draw. If two arrays are provided, will interpolate the value value = np.interp(wave, *bottom)
topfloat, (array-like, array-like): Upper limit of the vlines, with same interpolation options as bottom
x_padfloat: relative padding for text labels
wfuncfunc: Function to apply to the potential multiple entries for line complexes to specify where to draw the labels
y_labelfloat: Vertical location of the line text labels
prioritieslist: List of priorities to include from the linelist table
label_prioritieslist, None: List of priorities to include with text labels. If not provided, will be the same as priorities
label_prefixeslist: Prefix filtering for lines with text labels
y_normalizedbool: If True, the bottom, top and y_label values are calculated in the normalized frame of the plot extent, i.e., with 0 at the bottom and 1 at the top. Not used if values are interpolated.
lw, lsfloat, string: Linewidth and linestyle properties for the vlines
rotation, ha, va, fontsize, alpha, bbox, zorder: Text label properties

Returns

datatable: View of the linelist table with the selected lines

demo(xlim=[0.35, 0.51])[source]¶: Show a demonstration of various plot options

static from_table(tab, wave_column='wavelength', to_angstroms=1.0, color='0.5', priority=5, prefix='', ratio_column=None)[source]¶: Generate from normal table with a list of line wavelengths

load_data(fill_color='0.2')[source]¶: Load the data from msaexp/data/linelist.ecsv

select_lines(z=0, wave_range=[0, inf], prefixes=[], exclude_prefixes=[], priorities=[4, 5], floor=True, **kwargs)[source]¶

Get selection of lines within a wavelength range

Parameters

zfloat: Redshift
wave_range[float, float]: Observed-frame wavelength range. The script tries to automatically distinguish between wavelength units of Angstroms or microns assuming the latter if wave_range[1] < 500
prefixeslist: List of strings compared to the name column in the linelist using the test name.startswith(prefix)
prioritieslist: List of linelist priorities to include
floorbool: If true, ignore decimal part of the linelist priorities and just compare the integer values

Returns

selectedboolean array: Selection array on the listlist table that satisfy the selection criteria
x_scalefloat: Scale factor needed to put the “wavelength” column of the linelist in the frame of wave_range

spec_model(spec, z=0, selected=None, fnu=True, use_ratios=True, **kwargs)[source]¶

Make line models msaexp.spectrum.SpectrumSampler.fast_emission_line

Parameters

specSpectrumSampler: Spectrum object
zfloat: Redshift
selectedNone, array: Line selection array. If not provided, will pull from LineList.select_lines.
fnubool: Return in fnu units
use_ratiosbool: Use line ratio values. If False, normalize line flux to unity.
kwargsdict: Keyword arguments passed to LineList.select_lines and msaexp.spectrum.SpectrumSampler.fast_emission_line

Returns

resultdict

Model results:

templates: (Nline, Nwave) array. of line templates
names: line names
index: indices of the selected lines from the full linelist
